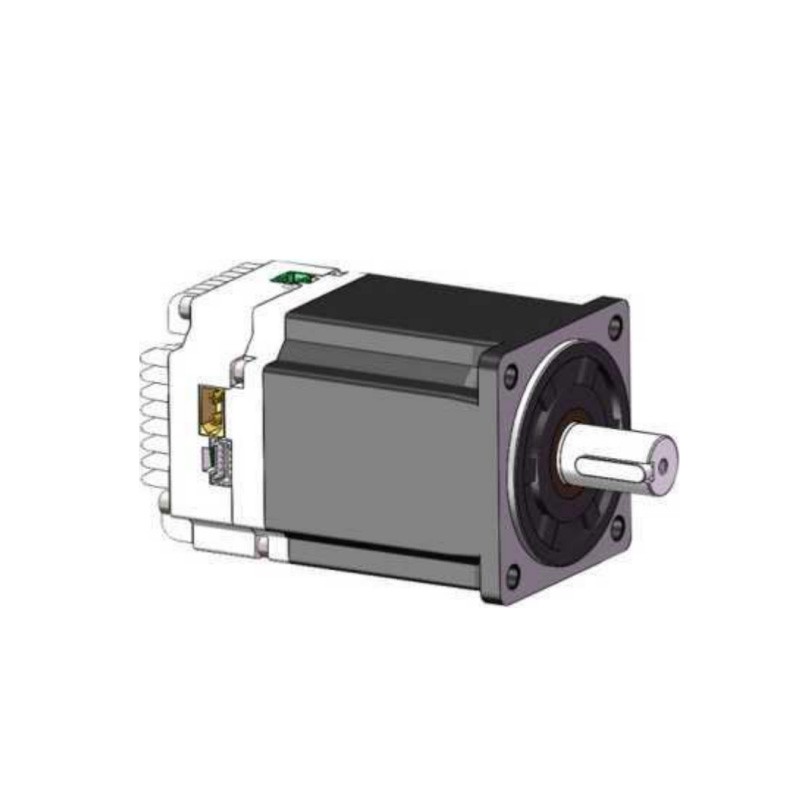

Kev sib xyaw servo lub cev muaj zog nrog tus tsav tsheb yog dav siv hom. Peb muaj ob yam li DC thiab raws li AC version. Kev sib xyaw servo lub cev muaj zog nrog tus neeg tsav tsheb yog qhov tsim qauv tsim thiab haum rau qhov zoo tagnrho rau daim ntawv thov nrog qhov chaw tsawg tab sis xav tau kev ua haujlwm siab thiab tswj tau yooj yim. Peb yog cov pioneer rau kev tsim thiab tsim cov DC servo lub cev muaj zog. Tus tsav tsheb thiab cov software kuj tsim los ntawm peb tus kheej kom lub cev muaj zog thiab tsav tsheb ua haujlwm zoo ua ke. Peb software yog heev yooj yim mus use thiab tag nrho cov kev ua tau zoo muaj peev xwm ntawm peb lub cev muaj zog. Los ntawm qhov tsim tshwj xeeb no los ntawm kev sib koom ua ke ntawm kev tsav tsheb mus rau lub cev muaj zog, peb cov khoom tuaj yeem ua tiav qhov yooj yim, qhov chaw tsawg dua thiab kev ua haujlwm siab.
Tej daim ntawv thov
Kev sib xyaw servo lub cev muaj zog nrog tus tsav tsheb yog dav siv hauv daim ntawv thov xws li tshuab, kho mob, AGV, RGV thiab lwm yam khoom siv logistic. Kev sib xyaw ua ke lossis kev sib xyaw tsim muaj ntau qhov yooj yim rau kev siv qhov chaw thaum tswj kev ua haujlwm siab ntawm servo lub cev muaj zog thiab tus tsav tsheb nrog peb tus kheej tsim software.
FAQ
Cim npe nrov: Tuam Tshoj servo lub cev muaj zog nrog tsav, Tuam Tshoj servo lub cev muaj zog nrog tsav manufacturers, lwm tus neeg, Hoobkas
MainSpecifications
|
Yam khoom |
Specifications |
|
Winding kev twb kev txuas hom |
Kev sib txuas hnub qub |
|
Hom encoder |
17 ntsis absolute encoder |
|
Ncej Radial Ua Si |
0.025 hli |
|
Radial clearance |
0.06 hli @ 450g |
|
Axial clearance |
0.08 hli @ 450g |
|
Maximum radial bearing quab yuam |
15N @ 20MM Pib nrog flange |
|
Maximum radial axial quab yuam |
10N |
|
Rwb thaiv tsev qib |
Qib B |
|
Dielectric zog |
500VAC / feeb |
|
Rwb thaiv tsev tsis kam |
Yam tsawg kawg nkaus 100H, 500VDC |
Qauv variants paub meej
|
Qauv |
MD80AIS 130-48-02430-1R001 |
MD80AIS 145-72-03230-1R001 |
|
Rated voltage (V) |
48/72 |
48/72 |
|
Rated zog (W) |
750 |
1000 |
|
Rated tam sim no (A) |
20 |
14.5 |
|
Rated torque (NM) |
2.4 |
3.2 |
|
Peak torque (NM) |
4.8 |
6.4 |
|
Rated ceev (RPM) |
3000 ± 10% |
3000 ± 10% |
|
Max ceev (RPM) |
3200 ± 10% |
3200 ± 10% |
|
Cable tsis kam (Ω) |
0.08 土 10% |
0.06 土 10% |
|
Kab inductance (MH) |
0.24 ±20% |
0.28 ±20% |
|
Torque coefficient (NM / A) |
0.12 ± 10% |
0.15 ± 10% |
|
Ntev (MM) |
130 |
145 |
|
Ncej |
5 |
5 |
|
Qib ntawm kev tiv thaiv |
IP54 |
IP54 |
|
Lub cev muaj zog rwb thaiv tsev chav kawm |
Chav F |
Chav F |
Order thiab Delivery Info
|
MOQ |
10 PCS |
Daim ntawv pov thawj |
ISO9001, CE |
|
Kev tshuaj xyuas |
Sampling soj ntsuam / tag nrho kev soj ntsuam |
Kev sib dhos/Pobe |
Txheem los yog raws li kev thov |
|
Lub sij hawm xa tuaj |
10-15 hnub |
Keeb kwm |
Shanghai Tuam Tshoj |
|
Hom |
Terminal Serial No |
Lub npe |
Muaj nuj nqi |
Nco tseg |
|
CN 1 |
1 |
DC + |
Cov ncej zoo ntawm DC fais fab mov |
Dc24-36v fais fab mov, zoo thiab tsis zoo |
|
2 |
GND |
Hwj chim & Hauv av |
||
|
CN 5 |
1 |
D01+ |
Output Terminal 01 |
Lub davhlau ya nyob twg muaj nuj nqi nyob ntawm tus neeg siv I/O function Settings |
|
2 |
DOI- TSI |
|||
|
3 |
D02+ |
Output Terminal 02 |
||
|
4 |
D02- |
|||
|
8 |
DI 1 |
Input Terminal 01 |
||
|
5 |
DI 2 |
Input Terminal 02 |
||
|
6 |
DI 3 |
Input Terminal 03 |
||
|
7 |
DIC |
Qhov kawg ntawm cov khoom siv hluav taws xob yog siv los tsav lub input optical coupler, uas txuas nrog DC12 ~ 24V (ntau zoo NPN txoj kev sib txuas) lossis OV (piv txwv tsis zoo PNI ncuav mog qab zib txoj kev), thiab tam sim no yog M 100mA |
||
|
9 |
DIR + |
Command direction positive kawg |
DC5-24V |
|
|
10 |
DIR - |
Tsis zoo kawg ntawm kev qhia kev taw qhia |
||
|
11 |
PUAS+ |
Hais kom pulse zoo kawg |
||
|
12 |
PULS- |
Tsis zoo kawg ntawm cov lus txib mem tes |
||
