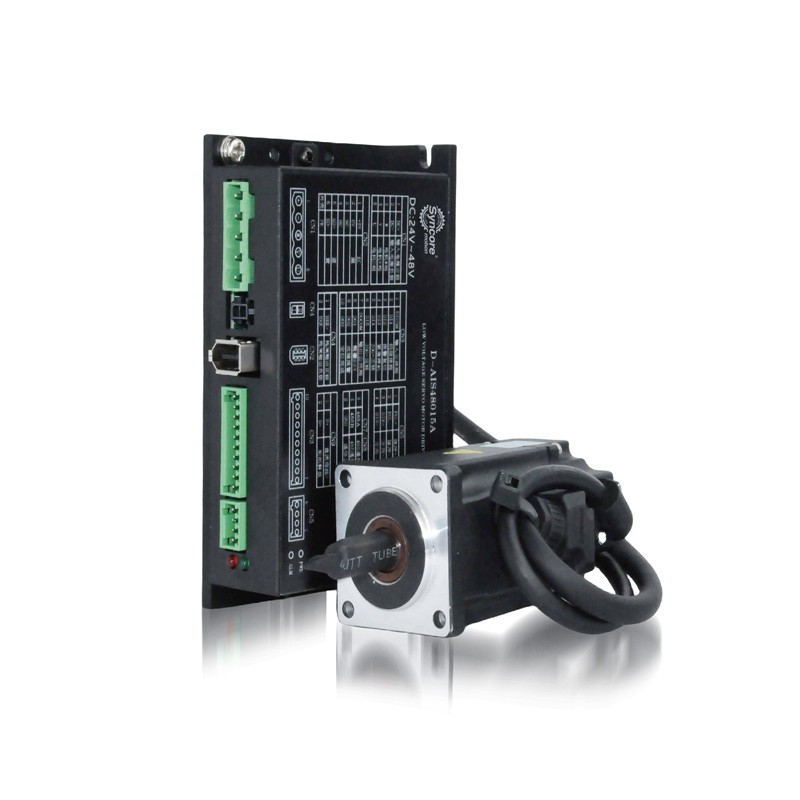

DC servo lub cev muaj zog tsav tsheb yog ib qho khoom siv ntau heev los ntawm peb cov khoom lag luam. DC servo lub cev muaj zog thiab tus tsav tsheb sib cais tau tsim nyob rau hauv tsev thiab sib koom ua ke zoo kawg nkaus. DC servo lub cev muaj zog muaj kev ua haujlwm siab thiab tswj tau yooj yim. Peb muaj ntau yam loj rau DC servo tsav tsav nrog lub cev muaj zog ntawm 40mm txog 130mm. Peb software yog heev yooj yim mus use thiab tag nrho cov kev ua tau zoo muaj peev xwm ntawm peb lub cev muaj zog.
Tej daim ntawv thov
DC servo lub cev muaj zog yog dav siv hauv daim ntawv thov xws li tshuab, kho mob tsim, AGV, RGV thiab lwm yam khoom siv logistic. Peb cov qauv tsim compact muaj ntau qhov yooj yim rau qhov chaw siv thaum tswj kev ua haujlwm siab ntawm DC servo lub cev muaj zog thiab tus tsav tsheb nrog peb tus kheej tsim software.
FAQ
Cim npe nrov: Tuam Tshoj dc servo lub cev muaj zog tsav, Tuam Tshoj dc servo tsav tsav manufacturers, lwm tus neeg, Hoobkas
MainSpecifications
|
Yam khoom |
Specifications |
|
Winding kev twb kev txuas hom |
Kev sib txuas hnub qub |
|
Hom encoder |
17 ntsis absolute encoder |
|
Ncej Radial Ua Si |
0.025 hli |
|
Radial clearance |
0.06 hli @ 450g |
|
Axial clearance |
0.08 hli @ 450g |
|
Maximum radial bearing quab yuam |
15N @ 20MM Pib nrog flange |
|
Maximum radial axial quab yuam |
10N |
|
Rwb thaiv tsev qib |
Qib B |
|
Dielectric zog |
500VAC / feeb |
|
Rwb thaiv tsev tsis kam |
Tsawg kawg 100H, 500VDC |
Qauv variants paub meej
|
Qauv No. |
MD57AIS{1}}R001 |
MD57AIS{1}}R001 |
MD57AIS{1}}R001 |
|
Rated voltage (V) |
24 |
24 |
24 |
|
Rated zog (W) |
32 |
60 |
85 |
|
Rated tam sim no (A) |
1.9 |
2.9 |
6.2 |
|
Rated torque (NM) |
0.48 |
0.63 |
1.45 |
|
Peak torque (NM) |
0.72 |
0.95 |
2.18 |
|
Rated ceev (RPM) |
1200 ± 10% |
1000 ± 10% |
1100 ± 10% |
|
Max ceev (RPM) |
1800 ± 10% |
1700 ± 10% |
2100 ± 10% |
|
Cable tsis kam (Ω) |
2.73 ± 10% |
1.52 ± 10% |
0.73 ± 10% |
|
Kab inductance (MH) |
1.15 ±20% |
0.62 ±20% |
0.27 ±20% |
|
Torque coefficient (NM / A) |
0.135 |
0.132 |
0.115 |
|
Hluav taws xob lub sij hawm tas li (MS) |
0.421 |
0.408 |
0.37 |
|
Ntev (MM) |
61 |
77 |
100 |
|
Ncej |
14 |
||
|
Qib ntawm kev tiv thaiv |
IP65 |
||
|
Lub cev muaj zog rwb thaiv tsev chav kawm |
Chav F |
||
