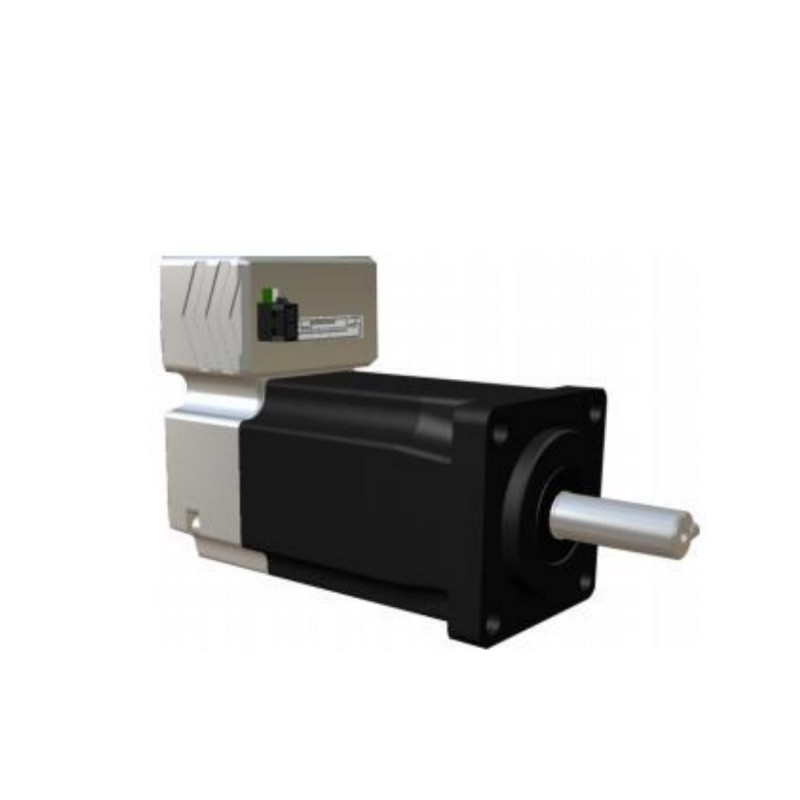

Ib qho loj me me rau peb cov DC servo lub cev muaj zog nrog tus tsav tsheb yog 40mm. Qhov me me ntawm kev sib xyaw DC servo lub cev muaj zog nrog tus neeg tsav tsheb ua rau nws zoo meej rau cov ntawv thov uas muaj kev ua haujlwm siab thiab hloov tau yooj yim tswj tau tab sis qhov chaw txwv. Peb yog thawj tus tsim thiab tsim xws li kev sib xyaw DC servo lub cev muaj zog. Txhawm rau kom ntseeg tau tias lub cev muaj zog thiab tus neeg tsav tsheb ua haujlwm tsis zoo ua ke, peb kuj tsim tus tsav tsheb thiab software. Peb cov software ua kom tag nrho peb lub cev muaj peev xwm ua tau zoo thiab yog tus neeg siv zoo kawg nkaus - tus phooj ywg. Peb cov khoom tuaj yeem ua tiav qhov kev ua tau zoo, qhov xav tau ntawm qhov chaw qis, thiab kev hloov pauv siab vim tias qhov kev tsim kho tshiab no ua ke nrog tus tsav tsheb nrog lub cev muaj zog.
Tej daim ntawv thov
Kev siv xws li tshuab, khoom siv kho mob, AGV, RGV, thiab lwm yam khoom siv logistic nquag siv DC servo motors nrog cov tsav tsheb. Thaum khaws cov kev ua tau zoo tib yam ntawm DC servo lub cev muaj zog thiab tus neeg tsav tsheb nrog peb cov software tsim, kev sib xyaw ua ke lossis kev sib xyaw ua ke muab kev yooj yim dua rau kev siv qhov chaw.
Cim npe nrov: dc servo lub cev muaj zog nrog tsav, Tuam Tshoj dc servo lub cev muaj zog nrog tsav manufacturers, lwm tus neeg, Hoobkas
MainSpecifications
|
Yam khoom |
Specifications |
|
Winding kev twb kev txuas hom |
Kev sib txuas hnub qub |
|
Hom encoder |
17 ntsis absolute encoder |
|
Ncej Radial Ua Si |
0.025 hli |
|
Radial clearance |
0.06 hli @ 450g |
|
Axial clearance |
0.08 hli @ 450g |
|
Maximum radial bearing quab yuam |
15N @ 20MM Pib nrog flange |
|
Maximum radial axial quab yuam |
10N |
|
Rwb thaiv tsev qib |
Qib B |
|
Dielectric zog |
500VAC / feeb |
|
Rwb thaiv tsev tsis kam |
Yam tsawg kawg nkaus 100H, 500VDC |
Qauv variants paub meej
|
Lub cev muaj zog ModelTsis muaj. |
SMD40SAIS83-24 -C00330-1R001 |
|
|
Rated voltage (V) |
24 |
|
|
Rated zog (W) |
100 |
|
|
Rated tam sim no (A) |
6.5 |
|
|
Rated torque (NM) |
0.32 |
|
|
Peak torque (NM) |
0.64 |
|
|
Rated ceev (RPM) |
3000 ± 10% |
|
|
Max ceev (RPM) |
3200 ± 10% |
|
|
Cable tsis kam (Ω) |
0.6 ± 10% |
|
|
Kab inductance (MH) |
0.4 ±20% |
|
|
Torque coefficient (NM / A) |
0.05 |
|
|
Ntev (MM) |
83 |
|
|
Ncej |
14 |
|
|
Qib ntawm kev tiv thaiv |
IP65 |
|
|
Lub cev muaj zog rwb thaiv tsev chav kawm |
Chav F |
Order thiab Delivery Info
|
MOQ |
10 PCS |
Daim ntawv pov thawj |
ISO9001, CE |
|
Kev tshuaj xyuas |
Sampling soj ntsuam / tag nrho kev soj ntsuam |
Kev sib dhos/Pobe |
Txheem los yog raws li kev thov |
|
Lub sij hawm xa tuaj |
10-15 hnub |
Keeb kwm |
Shanghai Tuam Tshoj |
