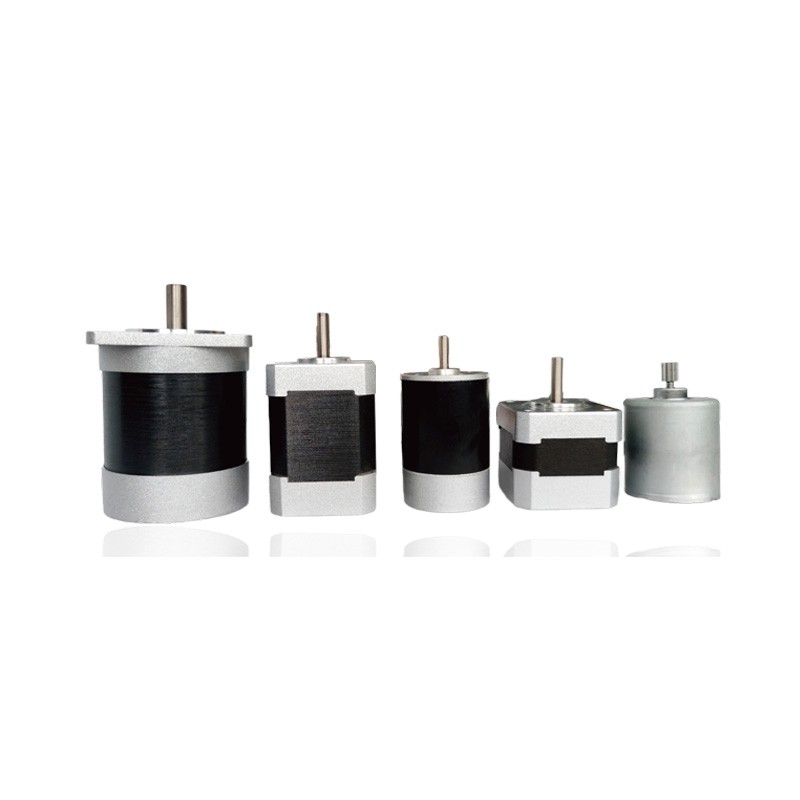

Ib qho ntawm peb cov khoom nrov tshaj plaws yog BLDC Brushless DC lub cev muaj zog. Lub servo lub cev muaj zog muaj lub neej ntev, kev siv hluav taws xob tsawg, thiab suab nrov tsawg thaum ua haujlwm yam tsis muaj txhuam. Ob tus neeg tsav tsheb ywj pheej thiab BLDC servo lub cev muaj zog tau tsim los ntawm peb thiab ua haujlwm flawlessly ua ke. Kev ua haujlwm siab thiab kev tswj tau zoo yog cov yam ntxwv ntawm DC servo motors. Rau BLDC, peb muaj kev xaiv dav ntawm lub cev muaj zog, xws li 40 txog 130 hli. Peb cov software ua kom tag nrho peb lub cev muaj peev xwm ua tau zoo thiab yog tus neeg siv zoo kawg nkaus - tus phooj ywg.
Tej daim ntawv thov
AGV, RGV, cov cuab yeej kho mob, tshuab, thiab lwm yam khoom siv logistical tsuas yog qee qhov ntawm ntau daim ntawv thov rau BLDC servo motors. Thaum khaws cov kev ua tau zoo tib yam ntawm DC servo lub cev muaj zog thiab tus tsav tsheb nrog peb tus kheej software, peb cov qauv tsim me me tso cai rau kev hloov pauv ntau dua ntawm kev siv qhov chaw.
Cim npe nrov: bldc brushless dc lub cev muaj zog, Tuam Tshoj bldc brushless dc tsav manufacturers, lwm tus neeg, Hoobkas
MainSpecifications
|
Yam khoom |
Specifications |
|
Winding kev twb kev txuas hom |
Kev sib txuas hnub qub |
|
Hom encoder |
17 ntsis absolute encoder |
|
Ncej Radial Ua Si |
0.025 hli |
|
Radial clearance |
0.06 hli @ 450g |
|
Axial clearance |
0.08 hli @ 450g |
|
Maximum radial bearing quab yuam |
15N @ 20MM Pib nrog flange |
|
Maximum radial axial quab yuam |
10N |
|
Rwb thaiv tsev qib |
Qib B |
|
Dielectric zog |
500VAC / feeb |
|
Rwb thaiv tsev tsis kam |
Tsawg kawg 100H, 500VDC |
Qauv variants paub meej
|
Qauv No. |
MD57AIS{1}}R001 |
MD57AIS{1}}R001 |
MD57AIS{1}}R001 |
|
Rated voltage (V) |
24 |
24 |
24 |
|
Rated zog (W) |
32 |
60 |
85 |
|
Rated tam sim no (A) |
1.9 |
2.9 |
6.2 |
|
Rated torque (NM) |
0.48 |
0.63 |
1.45 |
|
Peak torque (NM) |
0.72 |
0.95 |
2.18 |
|
Rated ceev (RPM) |
1200 ± 10% |
1000 ± 10% |
1100 ± 10% |
|
Max ceev (RPM) |
1800 ± 10% |
1700 ± 10% |
2100 ± 10% |
|
Cable tsis kam (Ω) |
2.73 ± 10% |
1.52 ± 10% |
0.73 ± 10% |
|
Kab inductance (MH) |
1.15 ±20% |
0.62 ±20% |
0.27 ±20% |
|
Torque coefficient (NM / A) |
0.135 |
0.132 |
0.115 |
|
Hluav taws xob lub sij hawm tas li (MS) |
0.421 |
0.408 |
0.37 |
|
Ntev (MM) |
61 |
77 |
100 |
|
Ncej |
14 |
||
|
Qib ntawm kev tiv thaiv |
IP65 |
||
|
Lub cev muaj zog rwb thaiv tsev chav kawm |
Chav F |
||
Order thiab Delivery Info
|
MOQ |
10 PCS |
Daim ntawv pov thawj |
ISO9001, CE |
|
Kev tshuaj xyuas |
Sampling soj ntsuam / tag nrho kev soj ntsuam |
Kev sib dhos/Pobe |
Txheem los yog raws li kev thov |
|
Lub sij hawm xa tuaj |
10-15 hnub |
Keeb kwm |
Shanghai Tuam Tshoj |
