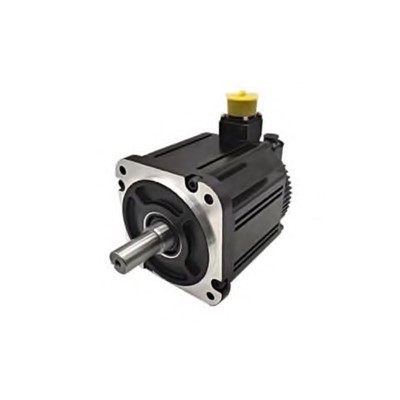

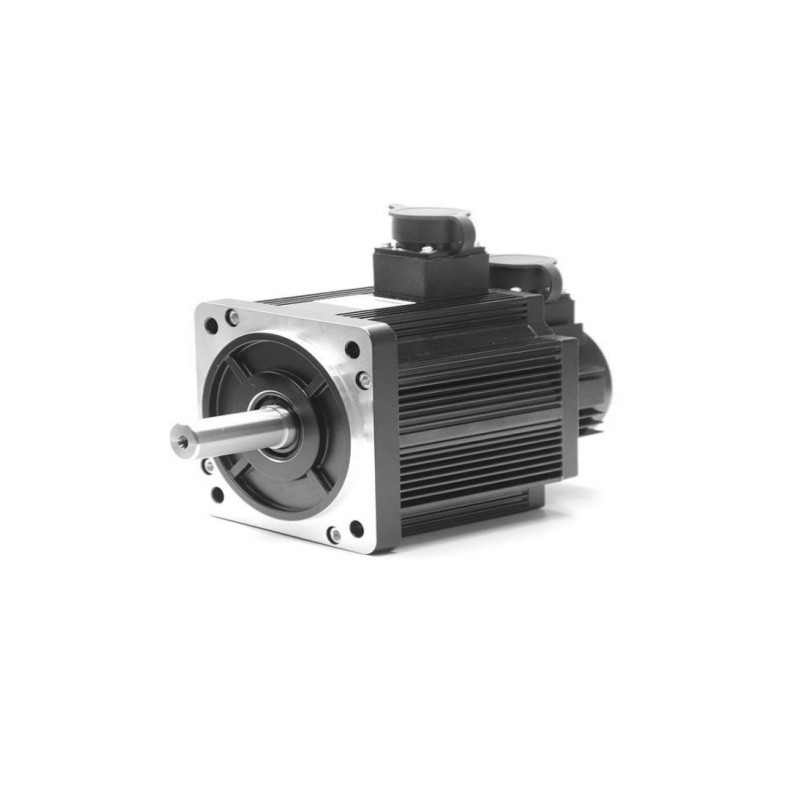

AC lub cev muaj zog ruaj khov servo yog lub siab -kev ua haujlwm rotary actuator uas ua rau muaj kev tswj xyuas meej. Raws li hom tseem ceeb nyob rau hauv niaj hnub automation, nws yog raws li lub hauv paus ntsiab lus ntawm lub cev muaj zog synchronous thiab ua haujlwm nyob rau hauv lub kaw - voj kaw lus. Qhov kev tsim no tso cai rau nws xa cov kev tswj hwm tshwj xeeb ntawm txoj haujlwm, tshaj tawm, thiab lub zog, ua rau nws lub cav tom qab txhua yam los ntawm kev lag luam robots mus rau CNC machinery.
Tej daim ntawv thov
AC servo lub cev muaj zog yog lub hauv paus ntawm kev lag luam niaj hnub, siv ntau yam kev siv xws li CNC tshuab, neeg hlau, khoom ntim khoom, thiab tsheb fais fab. Hauv ntej, nws yog qhov kev daws teeb meem zoo tshaj plaws rau txhua daim ntawv thov uas xav tau kev ntseeg siab, daim ntawv cog lus, thiab kev ua tau zoo dua, ceev, thiab tswj.
Cim npe nrov: Tuam Tshoj AC Permanent servo lub cev muaj zog manufacturers, lwm tus neeg, Hoobkas
MainSpecifications
|
Qeb |
Specification |
|
Tawm tswv yim |
2500-kab incremental encoder |
|
Rwb thaiv tsev |
Chav Kawm B (130 degree) |
|
Kev tiv thaiv Ingress |
IP64 |
|
Ua haujlwm kub |
-20℃rau +50 degree |
|
Kev khiav dej num |
Tsawg dua lossis sib npaug li 90% RH, tsis yog -condensing |
|
Mechanical Durability |
10,000 teev (min) |
|
Tshaj peev xwm |
300% ntawm qhov ntsuas torque (rau lub sijhawm luv) |
Qauv variants paub meej
|
Tsav Qauv |
200SFM-E53015 |
200SFM-E53020 |
200SFM-E70015 |
200SFM-E70020 |
200SFM-E84015 |
200SFM-E84020 |
|
Rated Lub zog( KW ) |
8.3 |
11.1 |
11 |
14.7 |
13.2 |
17.6 |
|
Rated Cable voltage (V) |
380 |
380 |
380 |
380 |
380 |
380 |
|
Rated Kab Tam sim no(A) |
16 |
22 |
21 |
28 |
23 |
23 |
|
Rated Ceev( rpm ua ) |
1500 |
2000 |
1500 |
2000 |
1500 |
2000 |
|
Rated Torque ( N.m ) |
53 |
53 |
70 |
70 |
84 |
84 |
|
Peak Torque ( N.m ) |
159 |
159 |
210 |
210 |
252 |
252 |
|
Kab-kab Kev tiv thaiv( Ω ) |
1.2 |
0.7 |
0.78 |
0.4 |
0.75 |
0.28 |
|
Kab - kab Inductance (mh) |
14.5 |
8.1 |
10.9 |
6.1 |
12.3 |
5.1 |
|
Qhov hnyav ( Kg) |
46 |
46 |
52 |
52 |
59 |
59 |
|
Ntev (mm) |
375 |
375 |
413 |
413 |
451 |
451 |
|
Encoder kab tus lej |
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
Order thiab Delivery Info
|
MOQ |
10 PCS |
Daim ntawv pov thawj |
ISO9001, CE |
|
Kev tshuaj xyuas |
Sampling soj ntsuam / tag nrho kev soj ntsuam |
Kev sib dhos/Pobe |
Txheem los yog raws li kev thov |
|
Lub sij hawm xa tuaj |
10-15 hnub |
Keeb kwm |
Shanghai Tuam Tshoj |
