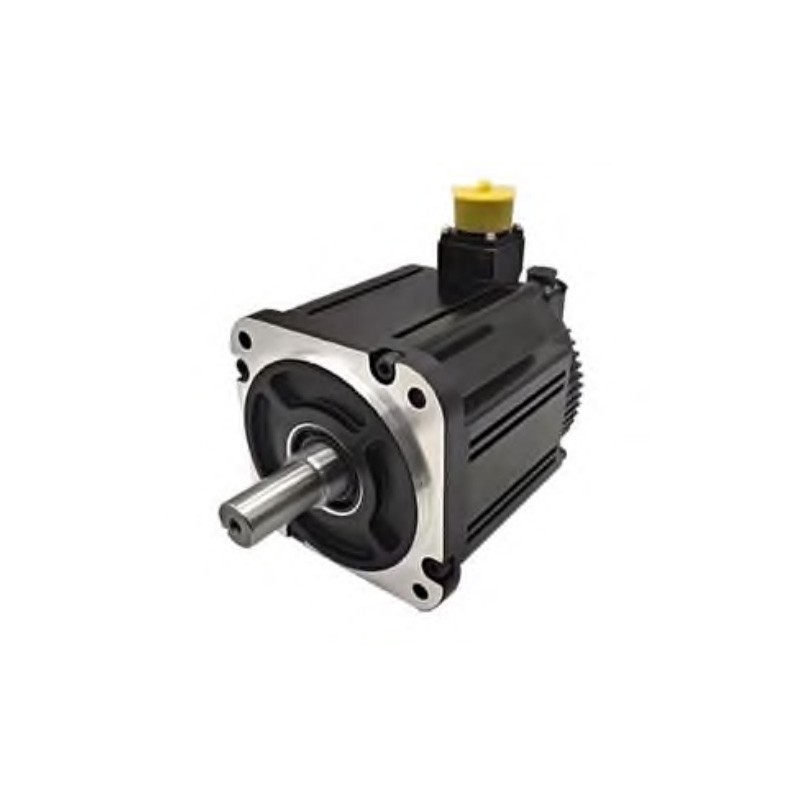

Ib tus tswv cuab nrov ntawm peb tsev neeg AC servo, AC servo lub cev muaj zog 2kw muaj kev ua tau zoo thiab kev tswj xyuas kom raug. Lub AC servo lub cev muaj zog 2kw feem ntau yog ua los ntawm "cov hlau nplaum ruaj khov synchronous puag," thiab peb muab cov qauv tsim tsis txhuam uas ua tau zoo dhau sijhawm thiab yuav tsum tau saib xyuas me ntsis. Nws ua haujlwm raws li kaw - voj kaw lus. Nws yog qhov zoo tshaj plaws rau kev thov cov ntawv thov hauv ntau lub sectors vim qhov kev sib xyaw ua ke no.
Tej daim ntawv thov
Me me -scale automation thiab robotics, semiconductor thiab electronics manufacturing, kho mob thiab kuaj cov cuab yeej, optics, hnub ci zog, thiab lwm yam tag nrho ua rau nws kim heev siv 2kw AC servo lub cev muaj zog.
Cim npe nrov: Tuam Tshoj servo lub cev muaj zog 2kw manufacturers, lwm tus neeg, Hoobkas
MainSpecifications
|
Yam khoom |
Specifications |
|
Tus lej encoder |
17bit ib |
|
Chav kawm kev nyab xeeb |
IP65 |
|
Environmental kub |
-20℃~ +40℃. |
|
Environmental Humidity |
Hauv qab 90% RH Tsis Frost |
|
Muaj peev xwm dhau |
3x ua |
|
Ncej |
5 ncej servo lub cev muaj zog |
|
Lub cev muaj zog rwb thaiv tsev |
Chav F |
Qauv variants paub meej
|
Lub cev muaj zog Model |
130 AWS-02815 |
130 AWS-05415 |
130 BST-08315 IB |
130 BST-11515 IB |
130 BST-14615 IB |
130 BST-17815 IB |
|
Rated zog (KW) |
0.45 |
0.85 |
1.3 |
1.8 |
2.3 |
2.8 |
|
Rated voltage (V) |
220 |
220 |
220 |
220 |
220 |
220 |
|
Rated tam sim no (A) |
3.7 |
6.9 |
10.7 |
15 |
12.5 |
15.5 |
|
Kev ntsuas tam sim no (A) |
11 |
17 |
28 |
42 |
37.5 |
46.5 |
|
Rated Torque (Nm) |
2.86 |
5.39 |
8.34 |
11.5 |
14.6 |
17.8 |
|
Peak torque (Nm) |
7.15 |
14.2 |
23.3 |
28.7 |
43.8 |
53.4 |
|
Rated Ceev (rpm) |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Max ceev (rpm) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Counter electronmotive quab yuam (V / 1000r / min) |
52.5 |
50.2 |
52 |
52.2 |
76.5 |
76 |
|
Moment coefficient (Nm/A) |
0.77 |
0.78 |
0.78 |
0.76 |
0.91 |
1.14 |
|
Kab - kab Resistance (Ω) |
2.4 |
0.98 |
0.54 |
0.42 |
0.69 |
0.46 |
|
Kab - kab Inductance (mH) |
25 |
12.32 |
8.5 |
6.2 |
10.25 |
10 |
|
Hluav taws xob lub sij hawm tas li |
10.41 |
12.57 |
15.74 |
14.76 |
14.85 |
21.73 |
|
Rotor inertia |
5.3x10-4 |
13.9x10-4 |
19.9x10-4 |
26x10-4 |
40.7x10-4 |
45.4x10-4 |
|
Tsav Length (mm) |
135.5 |
145 |
160 |
178 |
205 |
234 |
|
Lub cev muaj zog nres Length (mm) |
166 |
178 |
193 |
211 |
237 |
267 |
Order thiab Delivery Info
|
MOQ |
10 PCS |
Daim ntawv pov thawj |
ISO9001, CE |
|
Kev tshuaj xyuas |
Sampling soj ntsuam / tag nrho kev soj ntsuam |
Kev sib dhos/Pobe |
Txheem los yog raws li kev thov |
|
Lub sij hawm xa tuaj |
10-15 hnub |
Keeb kwm |
Shanghai Tuam Tshoj |
