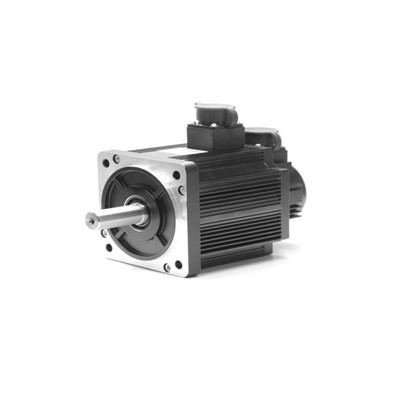

Peb -theem AC servo lub cev muaj zog yog tswj hwm los ntawm lub siab -kev ua haujlwm rotary actuator. Qhov tseeb qhov chaw, tshaj tawm, thiab kev tswj lub zog yog ua tau los ntawm nws cov synchronous ua haujlwm nrog nws cov teeb liab tsim. Feem ntau, "lub cev muaj zog ruaj khov synchronous puag" ua lub hauv paus rau 3 theem AC servo motors. Peb muab cov qauv tsim tsis muaj txhuam nrog lub zog ntev - kev ua tau zoo thiab kev saib xyuas tsawg kawg nkaus. Nws yog qhov kaw -loop software. Qhov kev sib xyaw ua ke no ua rau nws zoo meej rau cov haujlwm nyuaj hauv ntau lub lag luam.
Tej daim ntawv thov
CNC tshuab, hluav taws xob tsheb, hluav taws xob sib dhos tshuab, packing khoom, lag luam robots, thiab cobots tsuas yog ob peb ntawm ntau niaj hnub kev lag luam kev siv rau 3 theem AC servo lub cev muaj zog.
Cim npe nrov: 3 theem AC servo lub cev muaj zog, Tuam Tshoj 3 theem ac servo tsav manufacturers, lwm tus neeg, Hoobkas
Main Specifications
|
Yam khoom |
Specifications |
|
|
Encoder kab |
2500 |
|
|
Rwb thaiv tsev chav kawm |
Chav Kawm B (130 degree) |
|
|
Chav kawm kev nyab xeeb |
IP64 |
|
|
Ib puag ncig |
-20℃~ +50℃. |
|
|
Ib puag ncig |
Hauv qab 90% RH Tsis Frost |
|
|
Tshaj dhau |
3x ua |
|
Qauv variants paub meej
|
Tsav Qauv |
200SFM-E53015 |
200SFM-E53020 |
200SFM-E70015 |
200SFM-E70020 |
200SFM-E84015 |
200SFM-E84020 |
|
Rated Lub zog( KW ) |
8.3 |
11.1 |
11 |
14.7 |
13.2 |
17.6 |
|
Rated Cable voltage (V) |
380 |
380 |
380 |
380 |
380 |
380 |
|
Rated Kab Tam sim no(A) |
16 |
22 |
21 |
28 |
23 |
23 |
|
Rated Ceev( rpm ua ) |
1500 |
2000 |
1500 |
2000 |
1500 |
2000 |
|
Rated Torque ( N.m ) |
53 |
53 |
70 |
70 |
84 |
84 |
|
Peak Torque ( N.m ) |
159 |
159 |
210 |
210 |
252 |
252 |
|
Kab-kab Kev tiv thaiv( Ω ) |
1.2 |
0.7 |
0.78 |
0.4 |
0.75 |
0.28 |
|
Kab - kab Inductance (mh) |
14.5 |
8.1 |
10.9 |
6.1 |
12.3 |
5.1 |
|
Qhov hnyav( Kg) |
46 |
46 |
52 |
52 |
59 |
59 |
|
Ntev (mm) |
375 |
375 |
413 |
413 |
451 |
451 |
|
Encoder kab tus lej |
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
Order thiab Delivery Info
|
MOQ |
10 PCS |
Daim ntawv pov thawj |
ISO9001, CE |
|
Kev tshuaj xyuas |
Sampling soj ntsuam / tag nrho kev soj ntsuam |
Kev sib dhos/Pobe |
Txheem los yog raws li kev thov |
|
Lub sij hawm xa tuaj |
10-15 hnub |
Keeb kwm |
Shanghai Tuam Tshoj |
